Mastering Multi-Channel Fusion: The Critical Role of Camera Calibration and Lens Correction

Camera calibration

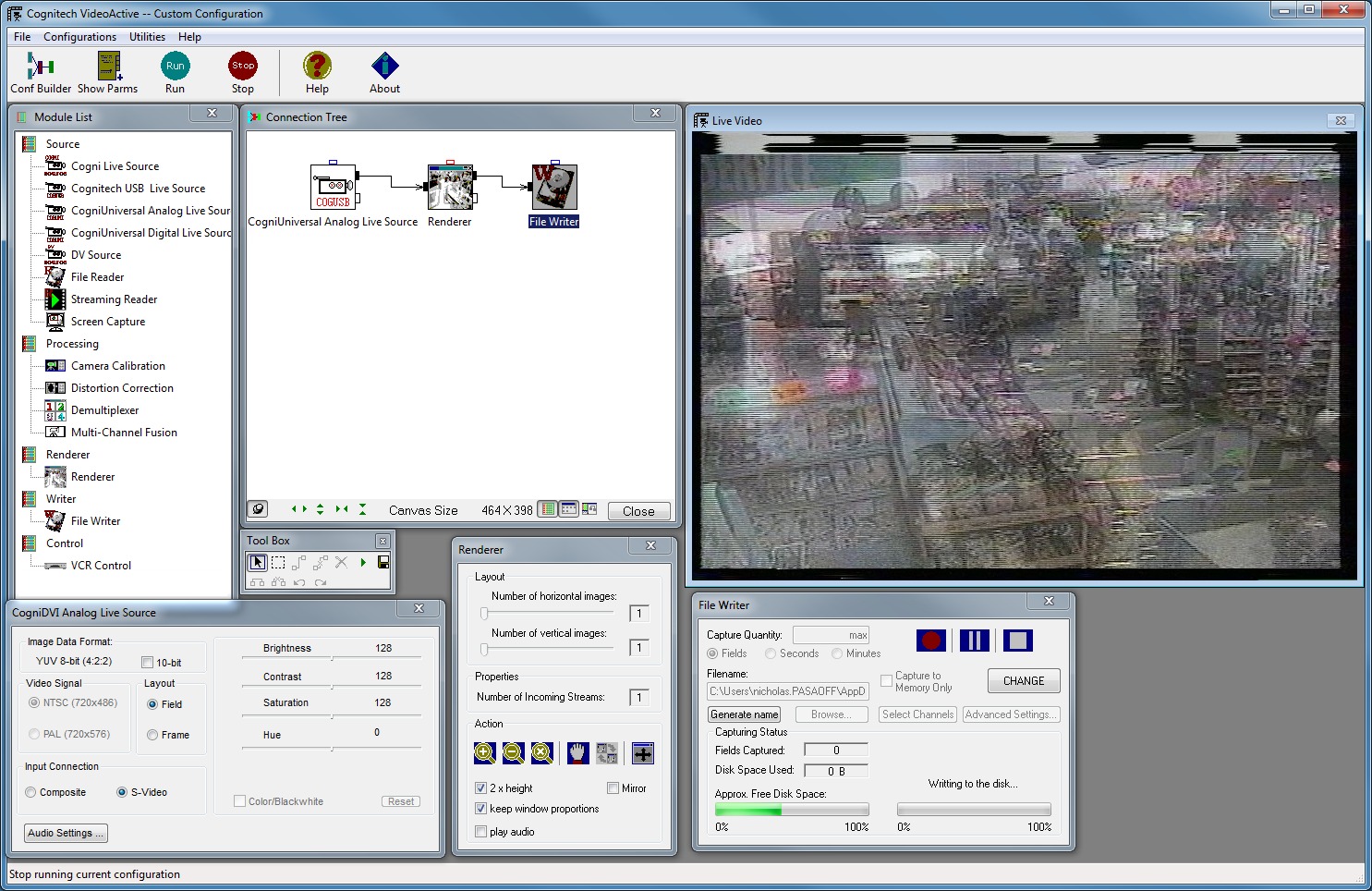

In the ever-evolving landscape of digital surveillance and mapping technologies, the integration of CCTV video with overhead photomaps, such as Google Maps, is a groundbreaking advancement. This fusion enables the playback of video footage with accurate geographic matching, opening up new vistas for security, urban planning, and a myriad of other applications. At the heart of this technological leap is the Multi-Channel Fusion system, powered by the VideoActive modules. These modules can be seamlessly combined to create a custom processing pipeline capable of handling live sources or locally stored files in real time. The recent transition to a 64-bit software architecture marks a significant upgrade, allowing for the handling of larger file sizes, including 4K and 8K videos. This upgrade not only facilitates the opening, playing, and saving of high-resolution videos but also significantly accelerates the execution of algorithms.

The Importance of Camera Calibration and Lens Correction

For Multi-Channel Fusion to achieve its full potential, two key processes must be meticulously executed: camera calibration and lens correction. These steps are crucial for ensuring that the video footage from CCTV cameras aligns perfectly with the corresponding overhead photomaps, guaranteeing accurate geographic matching.

Camera Calibration: The Foundation of Precision

Camera calibration is the process of determining the intrinsic (internal) and extrinsic (external) parameters of a camera. The intrinsic parameters deal with the camera’s lens characteristics, such as focal length, principal point, and distortion coefficients. These parameters are vital for correcting the lens distortion inherent in all cameras to varying degrees. Extrinsic parameters, on the other hand, define the camera’s position and orientation in the world. In the context of Multi-Channel Fusion, calibration ensures that each frame of video footage can be accurately mapped to real-world coordinates, a critical requirement for seamless integration with overhead photomaps.

Lens Correction: Ensuring Flawless Integration

Lens correction is closely related to camera calibration and refers to the process of correcting distortions introduced by the camera lens. These distortions can warp the footage, making precise geographic matching challenging. By applying lens correction algorithms, we can ensure that the video footage accurately represents the scene as it would appear to the naked eye. This step is indispensable for aligning CCTV footage with overhead photomaps, as even slight distortions can lead to significant inaccuracies in geographic matching.

Leveraging 64-bit Architecture for Enhanced Performance

The transition to 64-bit software architecture has been a game-changer for Multi-Channel Fusion. This upgrade allows the system to efficiently handle large video files, such as those in 4K and 8K resolutions, without compromising performance. The increased memory access in a 64-bit architecture means that algorithms, especially those involved in camera calibration and lens correction, can be executed much faster. This speed is crucial for real-time applications, where delays can render the information outdated or useless.


The integration of CCTV footage with overhead photomaps through Multi-Channel Fusion represents a significant technological advancement with wide-ranging applications. However, the success of this integration heavily relies on the accurate execution of camera calibration and lens correction. These processes ensure that video footage aligns perfectly with geographic locations, enabling accurate analysis and decision-making. With the advent of 64-bit software architecture, the potential for real-time, high-resolution video analysis is now a reality, opening up new possibilities for innovation in surveillance, urban planning, and beyond. As we continue to refine these processes, the future of digital mapping and surveillance looks increasingly precise and integrated.
